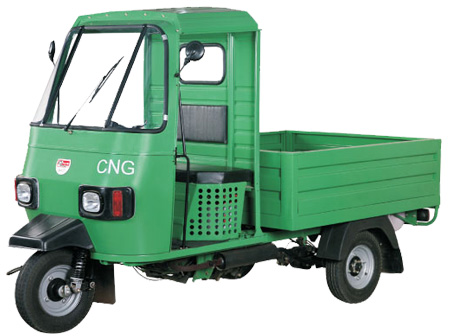

| Passenger Carriers :: "CNG/LPG Pick up Van" |
|
| Parameter |
Pace Wonder |
| Type |
Single Cylinder, 4 Stroke Petrol Engine, OHC. |
| Bore/Stroke, mm |
82 mm / 64 mm |
| Displacement |
338 cc. |
| Max. Power |
8.44 H.P. @ 4400 RPM |
| Max. Torque |
20 Nm @ 3200 RPM |
| Air Cleaner |
Dry Type |
| Oil Filter |
Spinon |
| Oil Quantity |
1.7 Ltr. |
| Cooling System |
Forced Air Cooled |
| Transmission |
| Type |
Constant mesh, Mechanical Selective. |
| No. of Gears |
4 Forward and 1 Reverse |
| Gear Ratios |
1 ST. 5 : 1 |
| |
2 ND. 2.93 : 1 |
| |
3 RD. 1.84 :1 |
| |
4 TH. 1.12 :1 |
| Clutch |
Multiple Wet Type |
| Front Axle |
Bolted Axle on leading Links |
| Rear Axle |
Fully Floating Axle Shaft |
| Steering |
Handle Bar |
| Suspension |
| Front |
Trailing Link with Hydraulic Shock Absorber |
| Rear |
2 Nos. Semi Elliptical Leaf Spring with ydraulic Shock Absorber |
| Tyres |
| |
4.50 - 10 - 8 pr. |
| Brakes |
| Service Brake |
Antidive All Three Wheels Hydraulic Self Adjusting Brakes with T.M.C. |
| Front |
Drum Brake |
| Rear |
Drum Brake |
| Parking Brake |
Mechanical on Rear Brake |
| Electrical System |
| system Voltage |
12 V |
| Battery |
12 V 35 Ah Multi Plate Lead Acid Motorized |
| Fuel Tank |
| Capicity |
3 Ltr. Petrol,
5 Kg.GAS @ 200 Bar,
15° Centigrade |
| Fuel Consumption |
35 +/- 2 Km./Kg. |
| Wheel Base |
| |
2000 mm |
| Wheel Trak |
| |
1100 mm |
| Minimum Ground Clearance |
| |
170 mm |
| Gvw |
| |
995 Kg |
| Payload |
|
| |
500 Kg. |
| Over All Dimensions |
| Over All Width |
1300 mm |
| Over All Length |
3000 mm |
| Overall Height |
1900 mm |
| Overall Weight |
- |
| Cargo Area |
1524x1384x406 |
|
|
